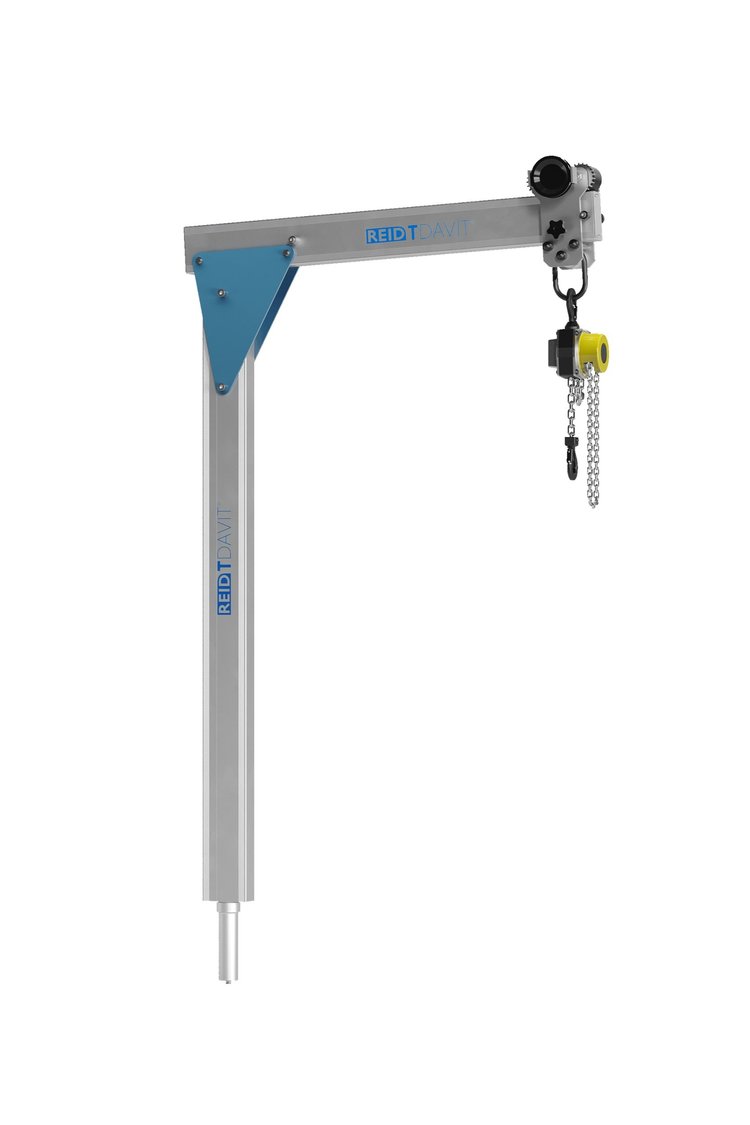

TDT Column 3
TDT Column 3 is the compact column option for the Geared Trolley system.
Product overview
Weaver Vale Safety supplies TDT Column 3 across the UK, helping customers choose suitable Reid Lifting equipment for access, rescue and lifting applications.
Key features
- Universal kingpin fits all Reid sockets
- ATEX Zone 2 certification as standard
- ATEX Zone 1 as optional upgrade
- Trolley can be traversed whilst under load (865mm to 1665mm)
- 360 degree rotation under load
- Can be combined with many manual or electrical hoists
Technical Specifications
| Column | 3 |
|---|---|
| ATEX | Zone 2 (Zone 1 optional) |
Dimensions & Models
| Product Code | WLL | Height Of Lift Min | Height Of Lift Max | Radius Min | Radius Max | System Weight |
|---|---|---|---|---|---|---|
| Goods Capacity [kg] | ||||||
| TDTA31200 | 400 | 1320 | 1320 | 335 | 1200 | 10 |
| TDTA31500 | 1335 | 1335 | 1500 | |||
| TDTA31700 | 200 | 1346 | 1346 | 1700 | 5 | |
| TDTA32000 | 1361 | 1361 | 2000 |
- Effort to move trolley: 5-15kg depending on WLL
