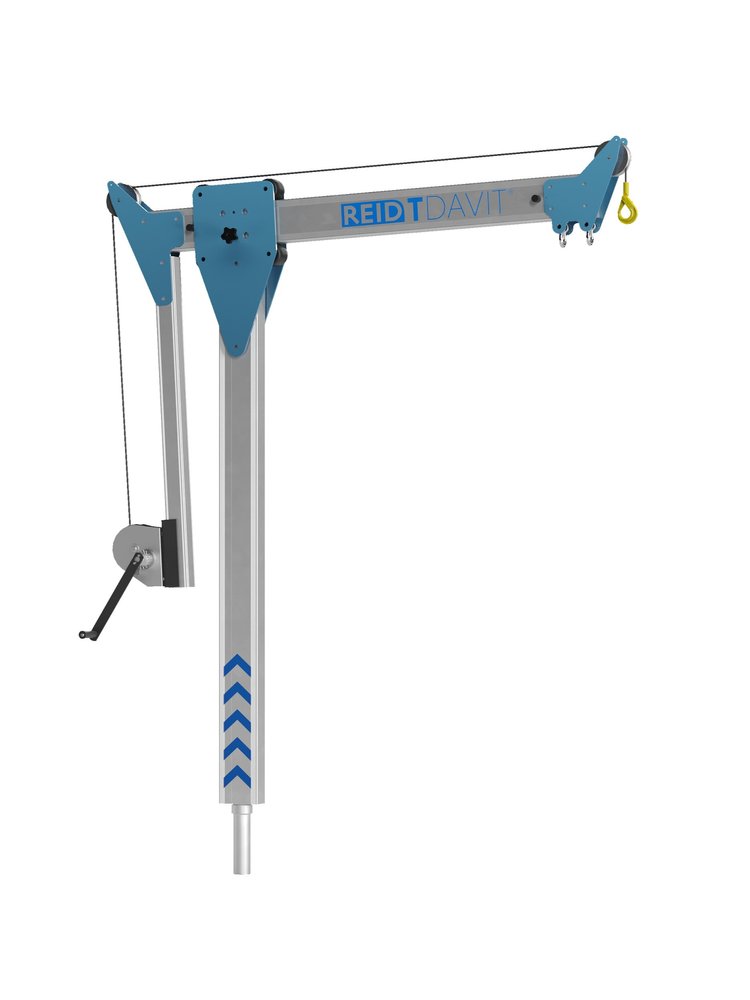

TDVW Column 4
TDVW Column 4 is the medium column option for the Variable Winch system.
Product overview
Weaver Vale Safety supplies TDVW Column 4 across the UK, helping customers choose suitable Reid Lifting equipment for access, rescue and lifting applications.
Key features
- Universal kingpin fits all Reid sockets
- ATEX Zone 2 certification as standard
- ATEX Zone 1 as optional upgrade
- Easy beam adjustment whilst under load (726mm to 1526mm)
- Can be combined with many manual or electrical hoists
Technical Specifications
| Column | 4 |
|---|---|
| Beam Adjustment | 726mm - 1526mm |
| ATEX | Zone 2 (Zone 1 optional) |
Dimensions & Models
| Product Code | WLL | System Weight | Height Of Lift Min | Height Of Lift Max | Radius Min | Radius Max |
|---|---|---|---|---|---|---|
| Goods Capacity [kg] | ||||||
| TDVWA41200 | 300 | 38 | 1783 | 1783 | 474 | 1200 |
| TDVWA41500 | 40 | 1797 | 1797 | 1500 | ||
| TDVWA41700 | 150 | 42 | 1808 | 1808 | 1700 | |
| TDVWA42000 | 44 | 1822 | 1822 | 2000 |
- Effort to move beam under load: 25-30kg (WLL 300kg), 20-25kg (WLL 150kg)
- All dimensions in mm
