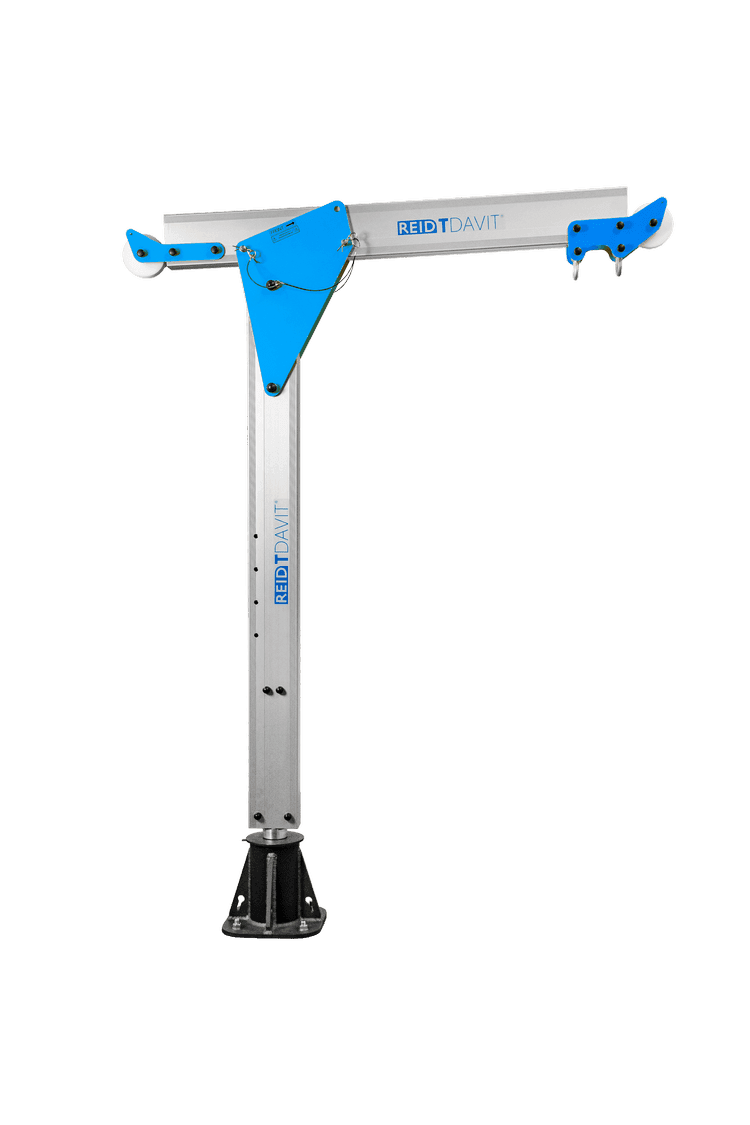

TDW Column 5
TDW Column 5 is the largest column option for the Winched system.
Product overview
Weaver Vale Safety supplies TDW Column 5 across the UK, helping customers choose suitable Reid Lifting equipment for access, rescue and lifting applications.
Key features
- EN795:2012 certified and meets IRATA ICOP requirements
- ATEX certified (Zone 2 standard, Zone 1 optional)
- Fall arrest capacity - one user
- Personnel capacity up to 300kg, goods capacity up to 600kg
- Sheave front and rear of beam for winch rope or cable
Technical Specifications
| Column | 5 |
|---|---|
| ATEX | Zone 2 (Zone 1 optional) |
Dimensions & Models
| Product Code | WLL | Column Weight | Beam Weight | Height Of Lift Min | Height Of Lift Max | Radius Min | Radius Max |
|---|---|---|---|---|---|---|---|
| Goods Capacity [kg] | |||||||
| TDWA5A1TD2 | 500 | 28 | 12 | 1925 | 2240 | 925 | 1000 |
| TDWA5A2TD2 | 13 | 1935 | 2315 | 1110 | 1200 | ||
| TDWA5A3TD2 | 375 | 16 | 1955 | 2460 | 1485 | 1600 |
- All dimensions in mm, weights in kg
